Solis S-Serie (Netzgebunden)
Verkabelung

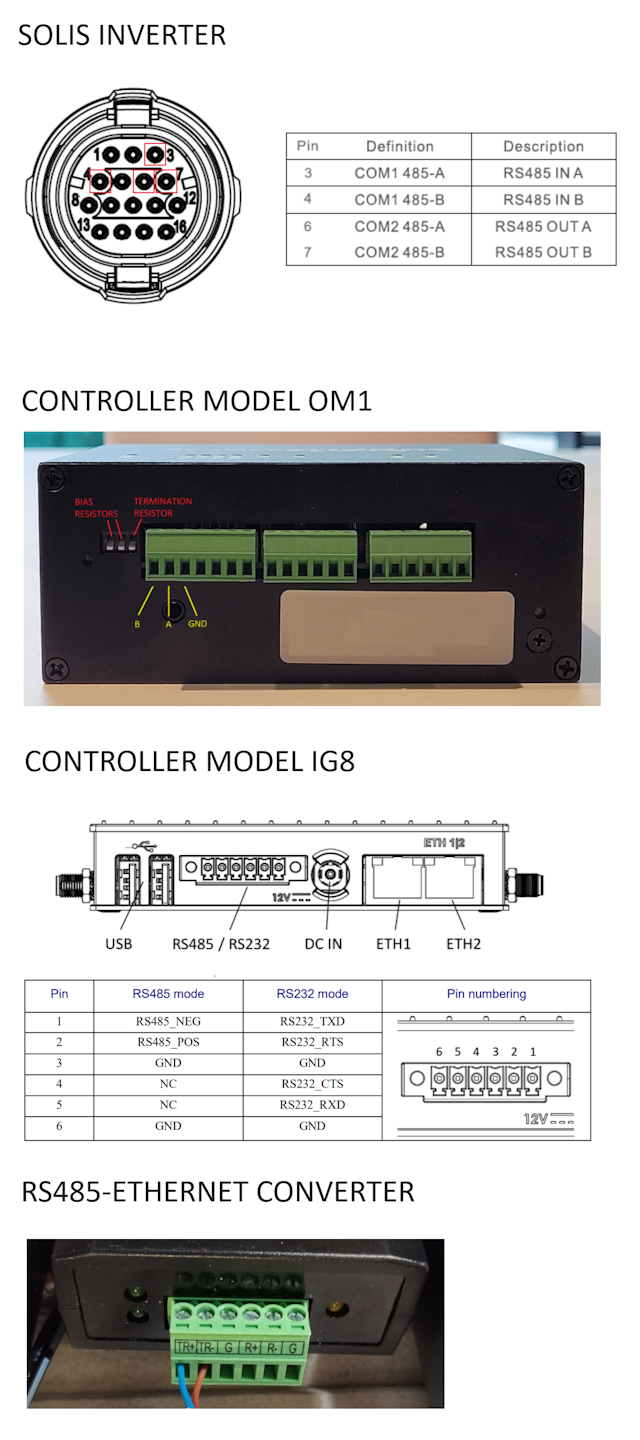

Die RS485-Verbindung erfolgt über den 16-poligen COM-Anschluss an der Unterseite des Wechselrichters.
Info
RS485 Wiring
- For correct RS485 wiring: Follow the guidelines for RS485 wiring.
- If the wiring shown in the table below is incorrect, please let us know.
- There is no general consensus in the industry about the usage of A and B for the RS485 polarity, so it may be counterintuitive and opposite of what you might expect for some devices.
| Device | Sofar EMS model OM1 | Sofar EMS model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| RS485 IN A | RS485 A | RS485_POS | RS485 A | TX+ |
| RS485 IN B | RS485 B | RS485_NEG | RS485 B | TX- |
| N/A | RS GND | GND | Not available | G |
Konfiguration
RS485
Warnung
NOTE: RS485 Device Addresses
- You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
- Use lower addresses first (1, 2, ...) because the Sofar EMS will find them faster!
- For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The Sofar EMS will scan on those first.
Standardmäßig ist der Wechselrichter auf Adresse 1 eingestellt. Diese kann über das Display des Wechselrichters geändert werden. Das Verfahren finden Sie im Kapitel 7.3.2 des Handbuchs.
